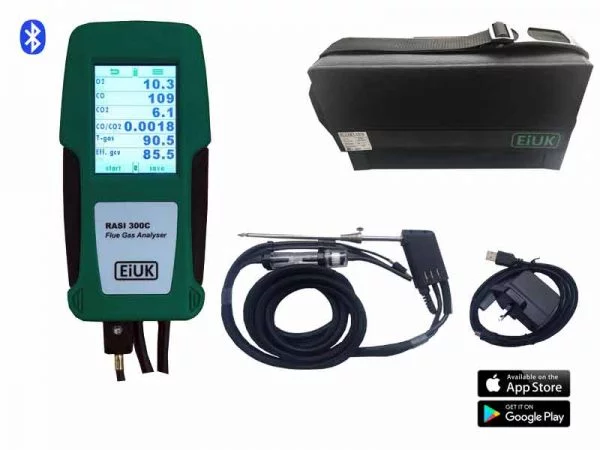

RASI300C – Flue Gas Analyser bluetooth & Printer kit for commercial installations

Compact and rugged flue gas analyser, with touch screen colour display, suitable for commercial Gas, Oil solid fuel installation

  • 5 Years Warranty including O2 & CO sensors
  • O2 long Life sensor up to 5 years
  • CO sensor 0-20000 ppm (H2 compensated)
  • Standard Bluetooth® communication for use with MRU4U mobile app ( IOS/ANDROID)
  • Menu for Flue Gas, Timed Tightness/let-By Test, CO room Build-up, T-Flow/T-Return
  • Display O2, CO, CO2, Ratio, Flue & Ambient Temperatures, efficiencies( N/G/C), excess air, flue gas dewpoint
  • Display gas pressure and combustion measurements at the same time
  • Multifuel (16) including Nat Gas, LPG, Light/Heavy Oil, Wood Pellet, Wood dry and 4 x user define
  • Li-Ion Rechargeable batteries for long lasting charge – Mini USB charging
  • New 6 Lines touch screen colour display
  • Data Logging with site ID, IRDA, SD card
  • Optional NO/NOx upgrade
  • TUV approved to EN 50379

Price: £985

Inc VAT: £1,182.00

Description

The RASI300C is a flue gas analyser suitable to carry out installation and maintenance works on commercial Gas, Oil and Biomass fuel heating systems,

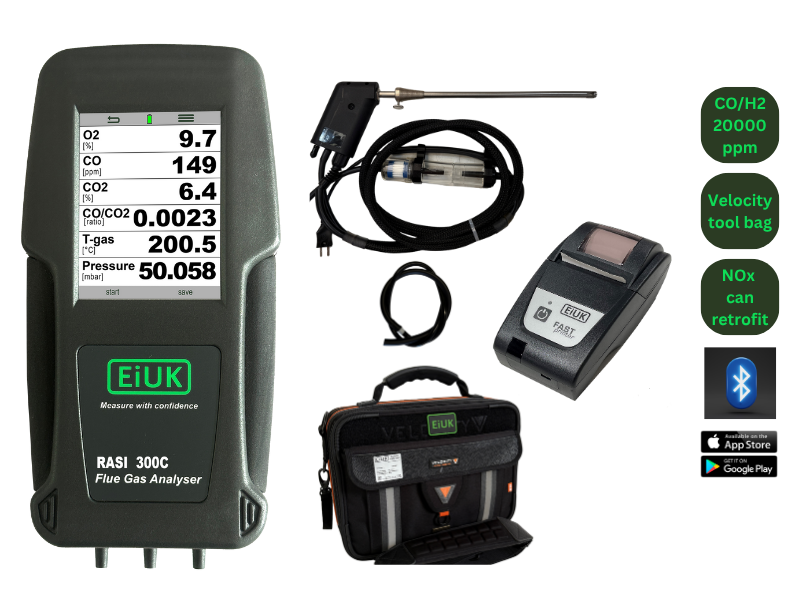

The EN50379, Parts 1-2 TUV certified RASI30oC is supplied with O2 and CO H2-compensated sensor up to 20,000 ppm (NO – can be retrofitted), 300 x 8 mm triple hose robust flue gas probe, bluetooth communication to our award winning MRU4U mobile app, IRDA fast printer, tightness test hose and custom made carrying case.

Service

Fixed Service Cost with only 2 days turnaround
The RASI 300 flue gas analyser is subjected to a fixed annual service cost of 99 GBP+ VAT which include the cost of servicing, calibration, the replacement of the O2 and/or CO cell when required and the issue of new calibration certificate with full test data valid for 12 months. This annual fixed service cost offer many advantages: low cost of ownership, keep the analyser with-in its 5 years warranty, you know exactly the running cost of your analyser, ensure that the analyser is fit for purpose and keep the analyser with-in the required legislation.

Accessories

Specification

O2 measurement
Range0 to 25 %
Accuracy± 0.2 % Vol
Resolution± 0.1 % Vol
CO measurement with H2 Compensation
Range0 to 20000 ppm
Accuracy± 10 ppm or ± 5 % of reading up to 4000 ppm
± 10% of reading from 1000 to 20000 ppm
Resolution1 ppm
CO2 % ( calculated from O2)
Range0 to CO2% Max
Accuracy± 0.3 % Vol
Resolution0.1 %
NO measurement (option)
Range0 to 5000 ppm
Accuracy± 5 ppm or ± 5 % of reading up to 1000 ppm
± 10% of reading from 1000 to 5000 ppm
Resolution1 ppm
Flue gas temperature measurement
Range– 50 to 1200 °C
Accuracy± 2 °C
Resolution0.1 °C
Air Temperature measurement
Range– 50 to 100 °C
Accuracy± 1 °C
Resolution0.1 °C
Flue Gas Draught measurement
Range± 50 mbar
Accuracy± 0.02 mbar
Resolution± 0.001 mbar
Pressure measurement
Range– 300 to 300 mbar
Accuracy± 0.02 mbar
Resolution± 0.001 mbar
CO/CO2 Ratio Calculation
Range0 to 99999
Resolution0.0001
Efficiency (Net, gross, Condensing) calculations
Range0 to 120% ETA
Resolution0.1 %
Air Ratio Calculation
Range1 to 9.99
Resolution0.01
Excess Air Calculation
Range0 to 99.9 %
Resolution0.1%
Heat losses Calculation
Range0 to 9.99 %
Resolution0.1%
Conversions calculation
emissions calculationppm/o2% refer, mg/m3, mg/m3 with O2 reference
 Fuels
Pres-set fuelsNat Gas, Heavy Oil Light Oil, LPG, Propane, Butane, Kerosene,Coal, Diesel,Petrol,Coke, Anthracite, Wood@0%, Wood@10%, Wood@20%, Wood@30%, Wood@40%, Wood@50%, Pellets
Digital & Software
Communicationsmicro USB, IRDA and Bluetooth as standard
Data logging4000 Data log on internal memory  & SD card
Mobile APP ( Free)MRU4U working on IOS & Android
Software (Optional)WIN4U emissions software
General
Gas Sampling probe250×8 mm  gas sampling probe with integrated temperature and draught measurement
Display4 lines touchscreen graphic colour display
Weight390 g
Dimensions82x169x44 mm
IP protectionIP 40
Power/mainLi-ION rechargeable batteries, 2250 mA/h , USB charging AC 100-240 VAC, 46-63Hz, USB lead and wall charger supplied
Operating/Storage temperature5 to 45 °C/ -20 to 50 °C
Warranty5  years warranty when serviced annually by EIUK
ApprovalsConform to BS 7967 , TUV SUD tested to BS EN 50279-1&2
