Digital Pressure Gauges
Digital pressure gauges are precision instruments designed for reading pressure or vacuum where precise measurement is needed with high resolution. They are mostly used as a reference gauge that enable easy viewing on a large digital display. They are small, portable, robust and battery powered. Many models can also store data which can be downloaded.
Supplied as a stand-alone process indicators or in a kit with the widely proven PGS hand pumps, our range of digital test gauges provide a reliable and economic solution for a wide range of on site and laboratory pressure testing applications.
Eurotron Instruments (UK) manufacture, supply and service a wide range of digital pressure test gauges, used in various industries including and ATEX version for use in potentially explosive areas.
Showing all 4 results
-
P10 Digital Pressue Test Gauge
Rugged and high quality digital pressure test gauge
- Ranges -1 to 25 and -1 to 40 bar
- 0.2% FS accuracy
- Back light Display
- 6 selectable pressure units
Key Features
Rugged and high quality rounded digital pressure test gauge suitable for testing application- An ideal solution as reference gauge together with our PGS series hand pumps
- Ranges -1 to 25 bar and -1 to 60 bar
- 0.2% FS accuracy
- Back-light Display
- 6 Selectable pressure units
- Max/Min/Function
-

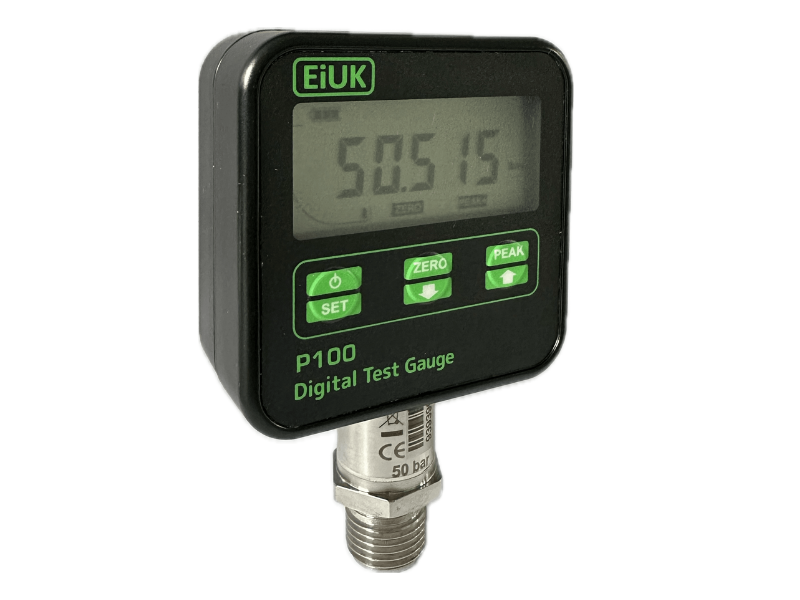

P100 – Digital Test Gauge
- Range from -1 trough 3000 bar
- Accuracy: 0.05 % FS
- 5 digits display resolution
- 5 selectable pressure units
- IP65 Class protection
- panel mounting version available
The P100 is a simple to use digital pressure test gauge which replaces traditional analogue gauges. It can be used in many application including process monitor and pressure calibration.
- Range from -1 trough 3000 bar
- Accuracy : ±0.05 % FS
- IP 65 case
- 5 selectable pressure units
- Available as a KIT with the PGS series hand held test pump
-
P11Ex Intrinsically Safe Digital Pressure Gauge
- Pressure Ranges: from -1 to 1000 bar
- 6 pressure units
- ± 0.1 % FS accuracy
- 4 1/2 digits LCD display
- ATEX approved to II 1 G EEx ia IIC T6 or T5
- Pressure Ranges: from -1 to 1000 bar
- 6 pressure units
- ± 0.1 % FS accuracy
- 4 1/2 digits display resolution
- ATEX approved to II 1 G EEx ia IIC T6 or T5
-
P125 – Digital Pressure Gauge with Data logging
- Ranges -1 trough 3000 bar
- Accuracy : ± 0.15 % FS
- Data logging up to 16000 data
- Real Time data transfer
- 11 selectable pressure units
- Pressure switch test function
The P125 digital pressure gauge is an high accuracy digital pressure indicator with an on-board data logging function. It can be used as process indicator or as reference gauge together with our range of pressure calibration hand pumps.
- Ranges -1 trough 3000 bar
- Accuracy : ± 0.15 % FS
- Fully temperature compensated 0-50 °C
- 11 selectable pressure units
- Data logging up to 16000 data
- USB port for charging and data download
- Pressure switch test function
