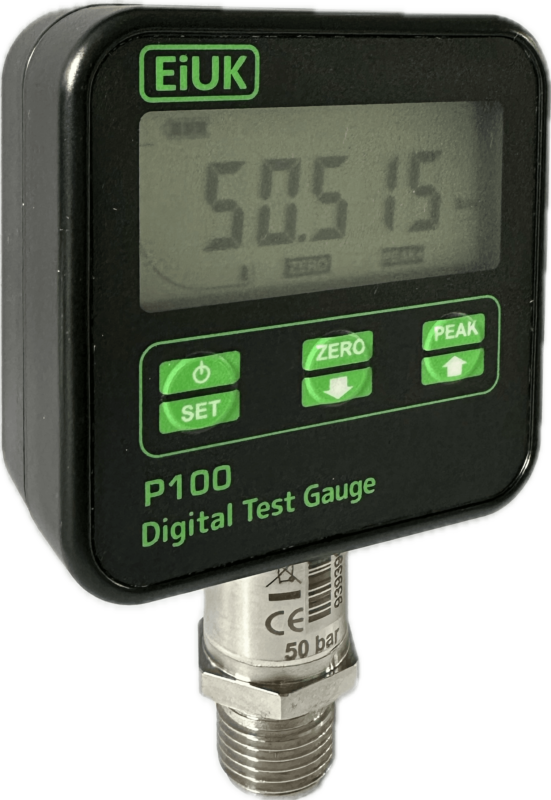

P100 – Digital Test Gauge

The P100 is a simple to use digital pressure test gauge which replaces traditional analogue gauges. It can be used in many application including process monitor and pressure calibration.

  • Range from -1 trough 3000 bar
  • Accuracy : ±0.05 % FS
  • IP 65 case
  • 5 selectable pressure units
  • Available as a KIT with the PGS series hand held test pump
Enquire about this product








Description

The P100  is a rugged, easy-to-use, and reliable Digital test Gauge that offers wide ranges from ± 500 mbar trough 3000 bar with accuracy up to 0.05% of full scale.

The P100 is compatible with most of hydraulic and pneumatic test pumps and pressure comparators.  And it combines with one of the our PGS hand pumps to provide a complete pressure testing and calibration solution.

The P100 digital test gauge features 5 selectable pressure units, bar graph display and IP65 protection.

It comes as standard with 1/2″ BSP M process connection but it is available as 1/4 ” BSP M or 1/4″ NPT M connection as option.

Features

  • up to ±0.05 % FS accuracy
  • 5 digits display resolution
  • Programmable “damp” filter
  • Zero and peak functions
  • mbar, bar, psi, KPa and kg/cm2 selectable pressure units
  • Bar Graph function
  • IP 65 protection
  • AA batteries operated
