Measure with confidence
Compact and rugged flue gas analyser, with touch screen colour display, suitable for commercial Gas, Oil solid fuel installation
Price: £1057
Inc VAT: £1,268.40

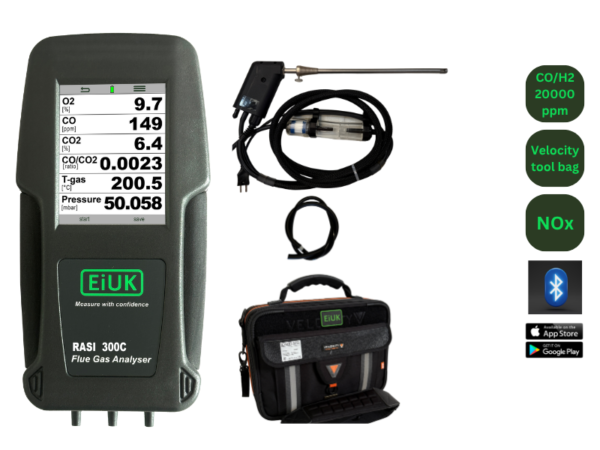

The RASI300C-3 is a flue gas analyser suitable to carry out installation and maintenance works on commercial Gas, Oil and Biomass fuel heating systems,
The EN50379, Parts 1-3 TUV certified RASI300C is supplied with O2 and CO H2-compensated sensor up to 20,000 ppm, NO(NOx) 0-5000 ppm, 250 x 8 mm triple hose robust flue gas probe, bluetooth communication to our award winning MRU4U mobile app, tightness test hose and custom made carrying case.
Fixed Service Cost with only 2 days turnaround
The RASI 300 flue gas analyser is subjected to a fixed annual service cost of 99 GBP+ VAT which include the cost of servicing, calibration, the replacement of the O2 and/or CO cell when required and the issue of new calibration certificate with full test data valid for 12 months. This annual fixed service cost offer many advantages: low cost of ownership, keep the analyser with-in its 5 years warranty, you know exactly the running cost of your analyser, ensure that the analyser is fit for purpose and keep the analyser with-in the required legislation.
| O2 measurement | |
| Range | 0 to 25 % |
| Accuracy | ± 0.2 % Vol |
| Resolution | ± 0.1 % Vol |
| CO measurement with H2 Compensation | |
| Range | 0 to 20000 ppm |
| Accuracy | ± 10 ppm or ± 5 % of reading up to 4000 ppm ± 10% of reading from 1000 to 20000 ppm |
| Resolution | 1 ppm |
| CO2 % ( calculated from O2) | |
| Range | 0 to CO2% Max |
| Accuracy | ± 0.3 % Vol |
| Resolution | 0.1 % |
| NO measurement (option) | |
| Range | 0 to 5000 ppm |
| Accuracy | ± 5 ppm or ± 5 % of reading up to 1000 ppm ± 10% of reading from 1000 to 5000 ppm |
| Resolution | 1 ppm |
| Flue gas temperature measurement | |
| Range | – 50 to 1200 °C |
| Accuracy | ± 2 °C |
| Resolution | 0.1 °C |
| Air Temperature measurement | |
| Range | – 50 to 100 °C |
| Accuracy | ± 1 °C |
| Resolution | 0.1 °C |
| Flue Gas Draught measurement | |
| Range | ± 50 mbar |
| Accuracy | ± 0.02 mbar |
| Resolution | ± 0.001 mbar |
| Pressure measurement | |
| Range | – 300 to 300 mbar |
| Accuracy | ± 0.02 mbar |
| Resolution | ± 0.001 mbar |
| CO/CO2 Ratio Calculation | |
| Range | 0 to 99999 |
| Resolution | 0.0001 |
| Efficiency (Net, gross, Condensing) calculations | |
| Range | 0 to 120% ETA |
| Resolution | 0.1 % |
| Air Ratio Calculation | |
| Range | 1 to 9.99 |
| Resolution | 0.01 |
| Excess Air Calculation | |
| Range | 0 to 99.9 % |
| Resolution | 0.1% |
| Heat losses Calculation | |
| Range | 0 to 9.99 % |
| Resolution | 0.1% |
| Conversions calculation | |
| emissions calculation | ppm/o2% refer, mg/m3, mg/m3 with O2 reference |
| Fuels | |
| Pres-set fuels | Nat Gas, Heavy Oil Light Oil, LPG, Propane, Butane, Kerosene,Coal, Diesel,Petrol,Coke, Anthracite, Wood@0%, Wood@10%, Wood@20%, Wood@30%, Wood@40%, Wood@50%, Pellets |
| Digital & Software | |
| Communications | micro USB, IRDA and Bluetooth as standard |
| Data logging | 4000 Data log on internal memory & SD card |
| Mobile APP ( Free) | MRU4U working on IOS & Android |
| Software (Optional) | WIN4U emissions software |
| General | |
| Gas Sampling probe | 250×8 mm gas sampling probe with integrated temperature and draught measurement |
| Display | 4 lines touchscreen graphic colour display |
| Weight | 390 g |
| Dimensions | 82x169x44 mm |
| IP protection | IP 40 |
| Power/main | Li-ION rechargeable batteries, 2250 mA/h , USB charging AC 100-240 VAC, 46-63Hz, USB lead and wall charger supplied |
| Operating/Storage temperature | 5 to 45 °C/ -20 to 50 °C |
| Warranty | 5 years warranty when serviced annually by EIUK |
| Approvals | Conform to BS 7967 , TUV SUD tested to BS EN 50279-1&2 |
RASI300C with O2 long Life, CO-H2 (0-20000 ppm), Bluetooth ( IOS/ANDROID) communication for use with free app MRU4U, IRDA fast printer, flue gas probe with hose (250×8 mm), new designed water trap with Teflon coated filter, LI-Ion rechargeable batteries, USB charger lead, wall charger, spare filter, calibration certificate, tightness test hose, Vinyl case and MRU4U software (light version)
RASI300C with O2 long Life, CO-H2 (0-20000 ppm), Bluetooth ( IOS/ANDROID) communication for use with free app MRU4U, flue gas probe with hose (250×8 mm), new designed water trap with Teflon coated filter, LI-Ion rechargeable batteries, USB charger lead, wall charger, spare filter, calibration certificate, tightness test hose, Vinyl case and MRU4U software (light version)
The EIUK smoke pump is compatible with all our range of flue gas analysers to determine the smoke number in oil burners. It is TÜV approved ( TUV by RgG 245). It includes:
