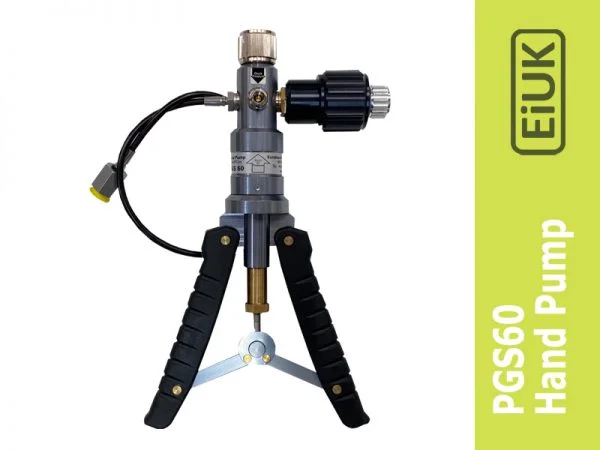

PGS60 - Hand Held Pressure Test Pump

Make Enquiry

The PGS-60 is a pneumatic test pump suitable for field testing and calibrating any type of pressure instruments

  • Dual output pressure and vacuum
  • Pressure up to 60 bar
  • Vacuum to -0.95 bar
  • Fine Adjustment
  • Pressure relief valve

Description

The PGS60 Pneumatic Hand Held Pressure Test Pump generate pressure up to 60 bar/870 psi and vacuum to -0.95bar.

It has been designed to provide maximum pneumatic pressures efficiently and effortlessly. The PGS60 can be used as a portable Pressure Calibrator in conjunction with various pressure indicating devices. This precision unit includes an adjustable over pressure protection system as standard.

The PGS60 hand Held Pressure test pump is ideal for calibrating pressure transmitters, pressure switches and pressure gauges up to 60 bar/870 PSI.

Features

• Dual source of  pressure and vacuum
• Built-in fine adjust vernier
• Needle valve provides controlled pressure release
• Selector valve for vacuum or pressure generation
• Comfortable, ergonomically designed molded handles
• Adjustable stroke
• Extremely efficient in generating up to 60 bar/870 psi

Specification

General
Pressure Range  0 to 60 bar/870 psi
Vacuum Range  0 to -0.95 bar/-13.7 psi
Medium Air
Test hose 0.5 meter
Dimension approx. 290 x 185 x 65 mm
Weight approx. 960 g
Material Aluminium, brass, ABS, NBR
Process Connections : Model PGS60-OEM
Reference Port G1/2 swivel adapter
Test point Test hose with G1/4 swivel adapter
Process Connections: Model PGS60-OEM-G14
Reference Port G1/4 swivel adapter
Test point Test hose with G1/4 swivel adapter
Process connections: Model PGS60-OEM-N14
Reference Port 1/4″ NPT Female
Test Point Test hose with 1/4″ NPT F adapter
